Prefabricated Service Pit

Service pit (called also a drop-in pit) can be used for a quick and cost effective maintenance pit.
It can be manufactured in two ways: with bent metal sheets segments welded together or individual welded metal sheet. This model is designed without metal sheet bending.

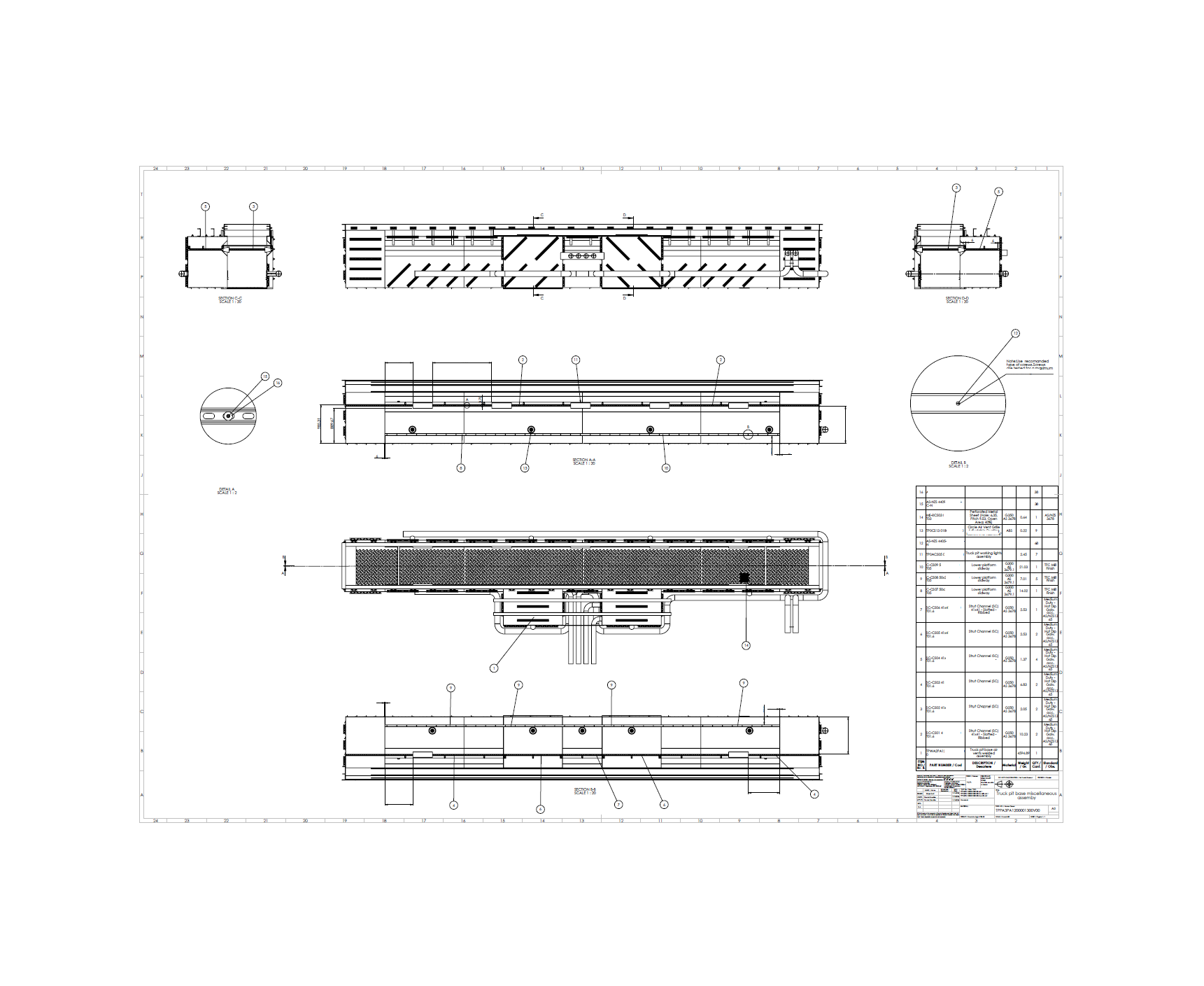

The whole base is welded on the frame. The other sub-assemblies are either welded or joint together with fasteners.
The prefabricated service pit is installed bellow ground (with the upper frame surface leveled with the ground) and encased in concrete.
